• Country
• Germany

• Manufacturer / Brand
• Kathrein; Rosenheim

• Year
• 1973 ??

• Category
• RF (Radio Frequency-) Amplifier

• Radiomuseum.org ID
• 258132

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Radio Frequency Amplification only

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

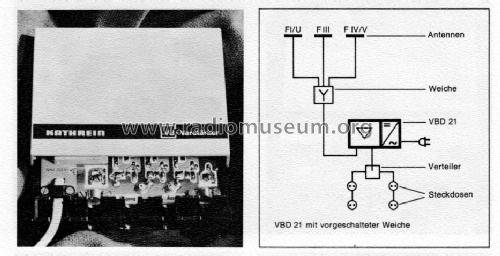

• Model: Mehrbereich-Verstärker VBD 21 BN 230.118 - Kathrein; Rosenheim

• Notes

• Breitband-Verstärker F 1 - F 5, V= 20 dB,

  max. Ausgangspegel 100 dBµV.

• Mentioned in

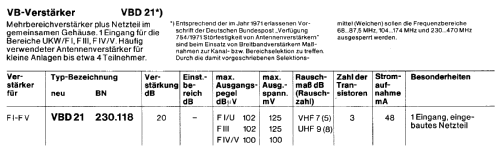

• -- Original prospect or advert

• Author
• Model page created by a member from D. See "Data change" for further contributors.
