• Country
• Germany

• Manufacturer / Brand
• Kathrein; Rosenheim

• Year
• 1994 ??

• Category
• Antenna (Aerial) or Coupler

• Radiomuseum.org ID
• 259488

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• RF Converter/Adapter (not voltage converter)

• Wave bands
• SAT-IF

• Power type and voltage
• Powered by external power supply or a main unit. / DC 15 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Speisesystem UAS 78 BN 268007 - Kathrein; Rosenheim

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 283 x 183 x 0 mm / 11.1 x 7.2 x 0 inch

• Notes

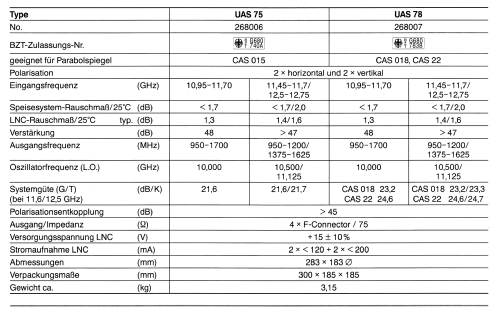

• Doppel-LNC zum gleichzeitigen Empfang von Astra und Kopernikus,

  Astra LNC: 10,95 - 11,70 GHz, LO 10,0 GHz, vert./hor. Ausgang 950-1700 MHz

  Kopernikus LNC: 11,45-11,7 GHz / 12,5-12,75 GHz, LO 10,50/11,125 GHz, vert./hor.

  Ausgang 950-1200/1375-1625 MHz

  geeignet für Parabol-Spiegel CAS 018 Ø 1,8m und CAS 22 Ø 2,2m.

• Net weight (2.2 lb = 1 kg)
• 3.150 kg / 6 lb 15 oz (6.938 lb)

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by a member from D. See "Data change" for further contributors.
