Umschaltmatrize EXR 20 BN 273256

Kathrein; Rosenheim

Data
Forum
Pictures
Collections

  • Year
  • 1997 ??
  • Category
  • Antenna (Aerial) or Coupler
  • Radiomuseum.org ID
  • 260816

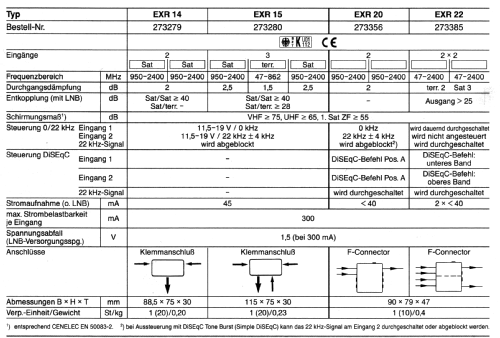

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • SAT-IF
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC 11,5-19 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Umschaltmatrize EXR 20 BN 273256 - Kathrein; Rosenheim
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 90 x 79 x 47 mm / 3.5 x 3.1 x 1.9 inch
  • Notes

  • Umschalt-Matrize für Sat-ZF, 2 Eingänge, 1 Ausgang,

    DiSEqC 2.0 Steuerung oder mit 22 kHz,

    Eingang 1: 950-2400 MHz, 11,5-19V, 0 kHz oder DiSEqc,

    Eingang 2: 950-2400 MHz, 11,5-19V, 22 kHz oder DiSEqc,

    die Stromversorgung wird der LNC-Spannung entnommen.

  • Net weight (2.2 lb = 1 kg)
  • 0.4 kg / 0 lb 14.1 oz (0.881 lb)
