Umschaltmatrize EXR 504 BN 273252

Kathrein; Rosenheim

  • Year
  • 1997 ??
  • Category
  • Antenna (Aerial) or Coupler
  • Radiomuseum.org ID
  • 260968

Click on the schematic thumbnail to request the schematic as a free document.

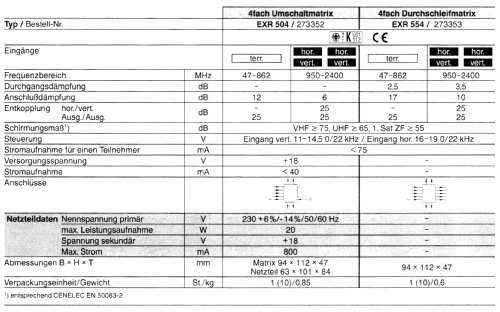

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • SAT-IF
  • Power type and voltage
  • Powered by external power supply or a main unit. / DC 18 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

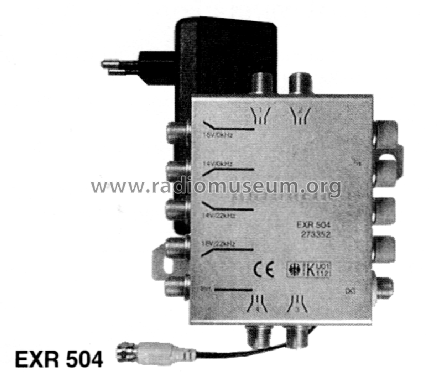

  • Model: Umschaltmatrize EXR 504 BN 273252 - Kathrein; Rosenheim
  • Shape
  • Miscellaneous shapes - described under notes.
  • Dimensions (WHD)
  • 94 x 112 x 47 mm / 3.7 x 4.4 x 1.9 inch
  • Notes
  • 4-fach Umschaltmatrize zur Verteilung von 4 Sat-ZF Ebenen auf 4 Teilnehmer mit zusätzlichem Eingang für Terrestrisch,

    Verwendung als Verteiler von 2 Satellitenpositionen mit je 1xVertikal und 1xHorizontal, oder Empfang von 2 Empfangsbereichen (Astra analog+Astra digital),

    5 Eingänge: 4 x Sat-ZF, 950-2400MHz, 1 x Terrestrisch 47-862MHz

    4 Ausgänge: Steuerung durch 14/18V und 22 KHz,

    eingebaute Verstärker mindern die Verteildämpfung.

    Die Stromversorgung der LNC und Matrize durch beiliegendes Netzteil mit18V 800mA.

    F-Buchsen

    .



  • Net weight (2.2 lb = 1 kg)
  • 0.850 kg / 1 lb 14 oz (1.872 lb)
  • Mentioned in
  • -- Original prospect or advert
  • Author
  • Model page created by a member from D. See "Data change" for further contributors.
