P-SK-D-5-1 (П-СК-Д-5-1)

P-SK-D-5-1 ; Kation, Industrial (ID = 1452887) Converter
Use red slider bar for more.
P-SK-D-5-1 ; Kation, Industrial (ID = 1452887) Converter

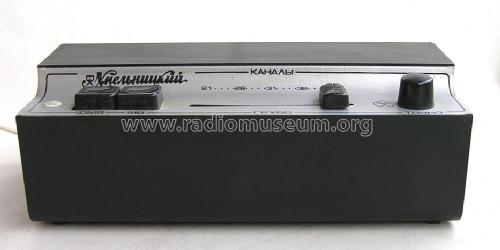

Kation, Industrial: P-SK-D-5-1 [Converter] ID = 1452887 933x467
Select picture or schematic to display from thumbnails on the right and click for download.
For model P-SK-D-5-1 (П-СК-Д-5-1), Kation, Industrial Union, Chmelnitskij, Ukraine

Country:  Soviet Union
Manufacturer / Brand:  Kation, Industrial Union, Chmelnitskij, Ukraine
Year: 1987 Category: Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter
Semiconductors (the count is only for transistors) 2: КТ3128А КТ3128А
Main principle RF Converter/Adapter (not voltage converter)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: P-SK-D-5-1 - Kation, Industrial Union,
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel with Push Buttons.
Notes

TV-Emfangskonverter zur Umsetzung des UHF-Bandes

470-640 MHz (Kanäle 21-41) auf das VHF-I-Band (Kanal 1 oder 2)

Model page created by Heiko Harry Hacker. See "Data change" for further contributors.
