Kaytone Hi-Fi 8 Transistors
Use red slider bar for more.

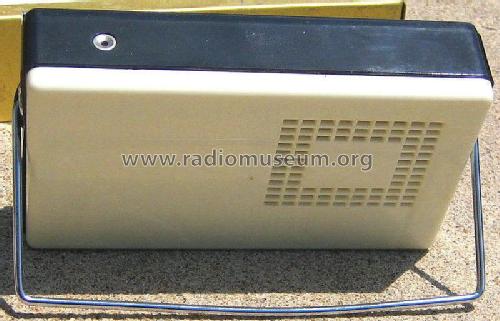

Kaytone Corp.; New: Kaytone Hi-Fi 8 Transistors [Radio] ID = 2131030 800x673
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1959 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 8: |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / AA: 4 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Kaytone Hi-Fi 8 Transistors - Kaytone Corp.; New York, NY |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 6 x 3.5 x 1.5 inch / 152 x 89 x 38 mm |
| Notes | With genuine leather strap, carrying strap, magnetic earphone, and separate telescopic antenna for screwing in (top side).
Similar to other models listed under Nipco 8 Transistors |
| Price in first year of sale | 60.00 USD |
Model page created by Günther Stabe † 19.8.20. See "Data change" for further contributors.
