• Year
  • 1982 ?
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 130447

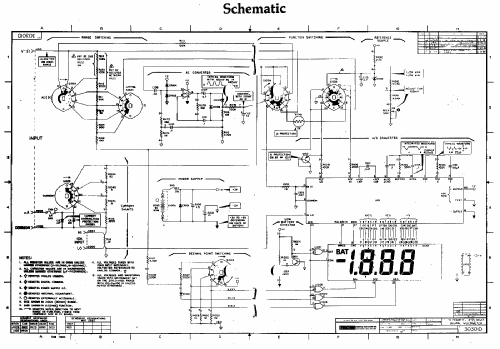

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 9 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org

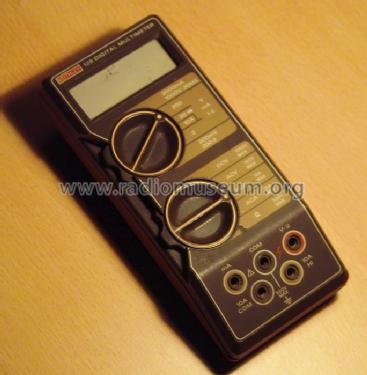

  • Model: Digital Multimeter 129 - Keithley Instruments Inc.;
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 78 x 35 x 178 mm / 3.1 x 1.4 x 7 inch
  • Notes
  • Pocket-Multimeter mit LCD-Anzeige. 25 Messbereiche - 10 Strombereiche für Gleich- und Wechselstrom bis 10 A. Diodentest. Eingangsimpedanz: 10 MOhm/100 pF, Überlastschutz durch Schmelzsicherung 2 A oder 250 V, Ohmbereich bis 300 V, Überlaufanzeige, Polaritäts- und Bereichsanzeige.
  • Net weight (2.2 lb = 1 kg)
  • 0.3 kg / 0 lb 10.6 oz (0.661 lb)
  • Price in first year of sale
  • 296.00 DM
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Karlheinz Fischer. See "Data change" for further contributors.
