• Country
• United States of America (USA)

• Manufacturer / Brand
• Keithley Instruments Inc.; Cleveland (OH)

• Year
• 1979 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 346183

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 2

• Semiconductors
• 2N3904 GES5818 CD4001 unknown_IC

• Wave bands
• - without

• Power type and voltage
• Dry Batteries / PP3: 1 x 9 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Digital Multimeter 130 [early] - Keithley Instruments Inc.;

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 79 x 38 x 178 mm / 3.1 x 1.5 x 7 inch

• Notes

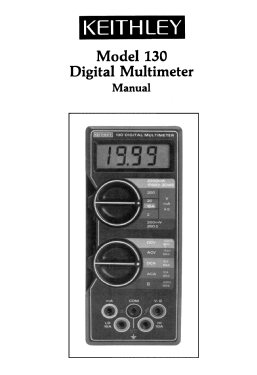

• Keithley, Digital Multimeter 130 (early).

  See changes in Keithley Digital Multimeter 130 (late).



• Net weight (2.2 lb = 1 kg)
• 0.283 kg / 0 lb 10 oz (0.623 lb)

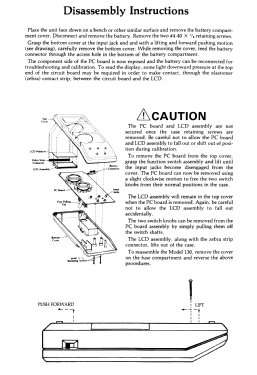

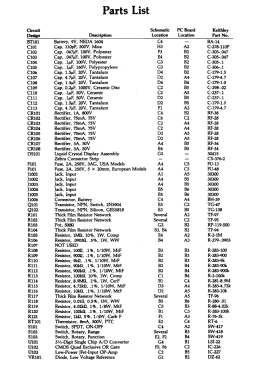

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
