Digital Multimeter 136

Digital Multimeter 136; Keithley Instruments (ID = 1607824) Equipment Digital Multimeter 136; Keithley Instruments (ID = 1607828) Equipment
Digital Multimeter 136; Keithley Instruments (ID = 1607830) Equipment Digital Multimeter 136; Keithley Instruments (ID = 1607833) Equipment
Digital Multimeter 136; Keithley Instruments (ID = 1607834) Equipment Digital Multimeter 136; Keithley Instruments (ID = 1607836) Equipment
Use red slider bar for more.
Digital Multimeter 136; Keithley Instruments (ID = 1607824) Equipment
Keithley Instruments: Digital Multimeter 136 [Equipment] ID = 1607824 442x644
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Multimeter 136, Keithley Instruments Inc.; Cleveland (OH)

Country:  United States of America (USA)
Manufacturer / Brand:  Keithley Instruments Inc.; Cleveland (OH)
Year: 1984 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Storage and/or dry batteries / 1 x 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Digital Multimeter 136 - Keithley Instruments Inc.;
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 85 x 175 x 40 mm / 3.3 x 6.9 x 1.6 inch
Notes

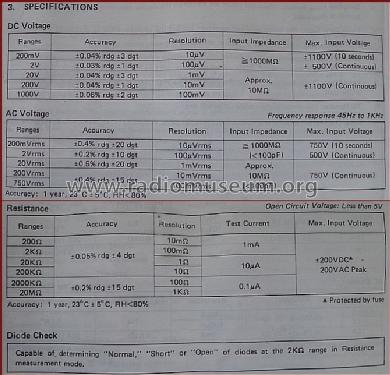

Die elektrische Parameter sind auf dem beigefügten Bildern aus dem Instruction Manual zu finden.

Net weight (2.2 lb = 1 kg) 0.350 kg / 0 lb 12.3 oz (0.771 lb)
Mentioned in Funkschau (Hannover-Special 84 / XXV)

Model page created by Rudolf Nemeth. See "Data change" for further contributors.
