High Voltage Supply 240A

• Country
• United States of America (USA)

• Manufacturer / Brand
• Keithley Instruments Inc.; Cleveland (OH)

• Year
• 1966 ?

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 349424

• Picture

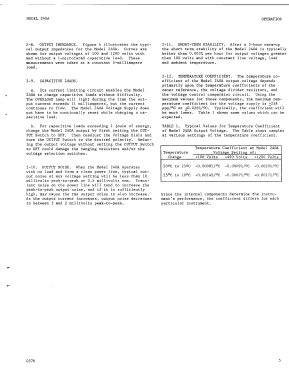

• Schematics

Previous Next

Previous Next

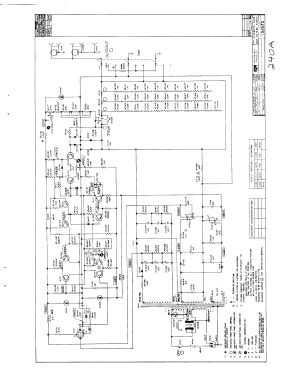

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 8068 0A2 0B2

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 105-125 or 210-250 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: High Voltage Supply 240A - Keithley Instruments Inc.;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 8.75 x 5.5 x 13 inch / 222 x 140 x 330 mm

• Notes

• High voltage power supply 0 - 1.2 kV at max. 10 mA output current, adjustable in 1V steps.

  Deviation nominal +/- 1%.

• Net weight (2.2 lb = 1 kg)
• 12 lb (12 lb 0 oz) / 5.448 kg

• Author
• Model page created by Max Jäger. See "Data change" for further contributors.

• Other Models

• Here you find 37 models, 33 with images and 16 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Keithley Instruments Inc.; Cleveland (OH)
