- Country
- France
- Manufacturer / Brand
- Kénotron, Dauphin et Rosengarten; Paris
- Year
- 1925 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 324657
Dépliant Kénotron
Dépliant Kénotron
- Number of Tubes
- 4
- Valves / Tubes
- Main principle
- TRF with regeneration
- Tuned circuits
- 1 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- Storage and/or dry batteries
- Loudspeaker
- - This model requires external speaker(s).
- Material

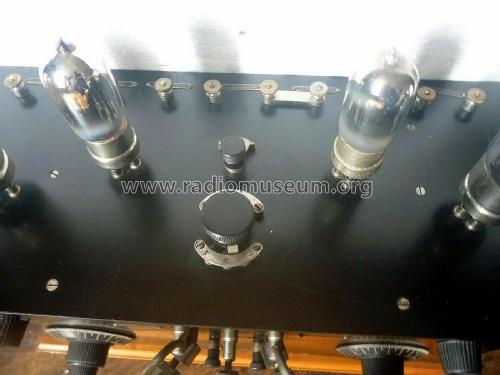

- Wooden case, TUBES VISIBLE.
- from Radiomuseum.org
- Model: RC - Kénotron, Dauphin et
- Shape
- Tablemodel, Box - most often with Lid (NOT slant panel).
- Dimensions (WHD)
- 390 x 200 x 175 mm / 15.4 x 7.9 x 6.9 inch
- Notes
-
Montage C119 bis, Tuned Anode. Selfs interchangéables. Réception des longueurs d'ondes de 50 à 30000 m.
- Price in first year of sale
- 750.00 FRF
- Mentioned in
- -- Original prospect or advert
- Other Models
-
Here you find 24 models, 6 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Kénotron, Dauphin et Rosengarten; Paris
