• Year
  • 1980 ??
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 315671

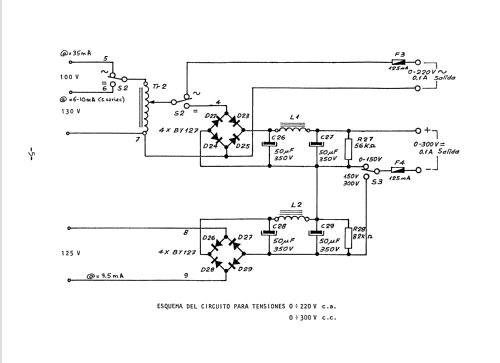

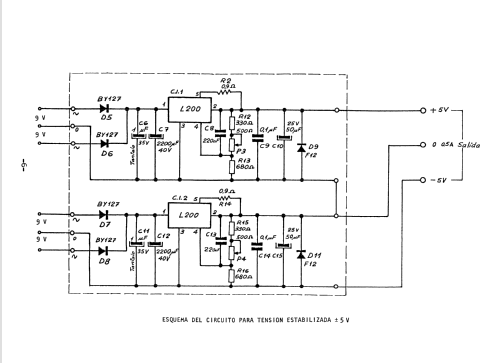

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 6
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • from Radiomuseum.org

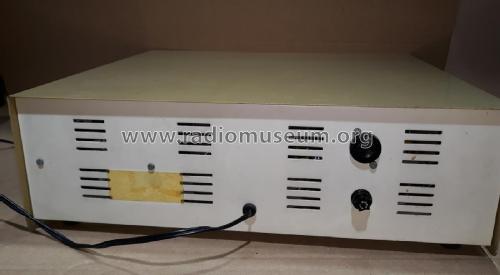

  • Model: Fuente de Alimentación C-36-A - Kentel Electrónica Didáctica
  • Notes
  • Kentel, Electrónica Didáctica (Distesa), Fuente de Alimentación C-36-A

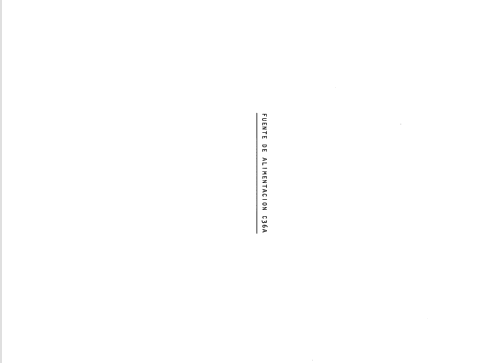

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
