Fantasia

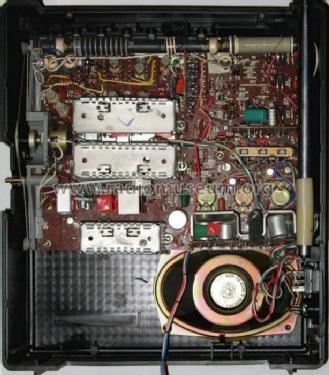

Fantasia ; Kiev Radio Works, (ID = 626916) Radio Fantasia ; Kiev Radio Works, (ID = 626917) Radio

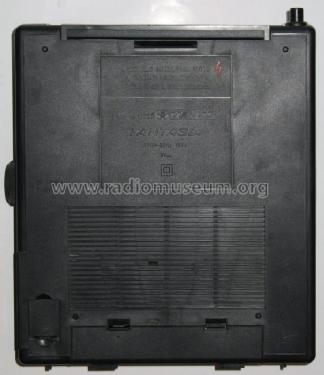

Fantasia ; Kiev Radio Works, (ID = 626914) Radio Fantasia ; Kiev Radio Works, (ID = 626913) Radio

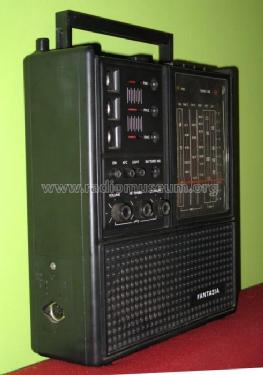

Fantasia ; Kiev Radio Works, (ID = 626915) Radio Fantasia ; Kiev Radio Works, (ID = 626918) Radio

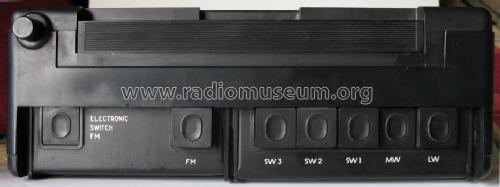

Fantasia ; Kiev Radio Works, (ID = 626919) Radio
Use red slider bar for more.

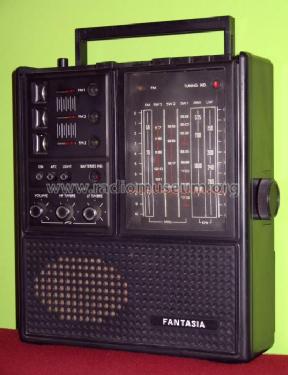

Fantasia ; Kiev Radio Works, (ID = 626916) Radio
Kiev Radio Works,: Fantasia [Radio] ID = 626916 538x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Fantasia, Kiev Radio Works, Kiev:
Thanks for Első Zalai Rádiómúzeum Alapítvány ( radio-muzeum.hu), First Zala County Radio Museum Foundation, Hungary, Zalaegerszeg.

Country:  Soviet Union
Manufacturer / Brand:  Kiev Radio Works, Kiev
Year: 1984 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 220/ 6 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out
from Radiomuseum.org Model: Fantasia - Kiev Radio Works, Kiev
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 246 x 290 x 90 mm / 9.7 x 11.4 x 3.5 inch
Notes FM-OIRT (68-74 MHz),3 fix program, 3 SW: 31-49 m.
Analog - SU radio set "Meridian 237" (see in RMorg)
Net weight (2.2 lb = 1 kg) 2.4 kg / 5 lb 4.6 oz (5.286 lb)
Source of data -- Collector info (Sammler)

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
