Kiev {Киев} B-2

Kiev {Киев} B-2; Kiev Radio Works, (ID = 277605) Radio
Kiev {Киев} B-2; Kiev Radio Works, (ID = 1604424) Radio Kiev {Киев} B-2; Kiev Radio Works, (ID = 277603) Radio

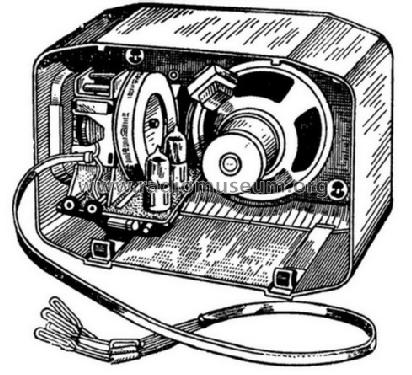

Kiev {Киев} B-2; Kiev Radio Works, (ID = 277604) Radio
Use red slider bar for more.
Kiev {Киев} B-2; Kiev Radio Works, (ID = 1604424) Radio
Kiev Radio Works,: Kiev {Киев} B-2 [Radio] ID = 1604424 800x651
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kiev {Киев} B-2, Kiev Radio Works, Kiev

Country:  Soviet Union
Manufacturer / Brand:  Kiev Radio Works, Kiev
Year: 1952 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 2: 1К1П 2П1П
Main principle TRF with regeneration; ZF/IF 1 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 80 & 1,2 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.07 W (unknown quality)
from Radiomuseum.org Model: Kiev {Киев} B-2 - Kiev Radio Works, Kiev
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 257 x 206 x 140 mm / 10.1 x 8.1 x 5.5 inch
Notes Battery radio for country-people. Model "Riga B 912" (see in RMorg) modernized variant.
Net weight (2.2 lb = 1 kg) 3.5 kg / 7 lb 11.3 oz (7.709 lb)
Mentioned in E.A. Levitin "Radio sets" Moscow 1960

Model page created by Zenonas Langaitis. See "Data change" for further contributors.
