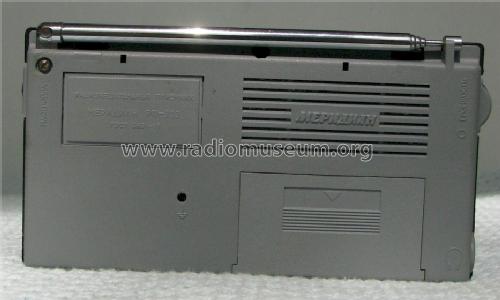

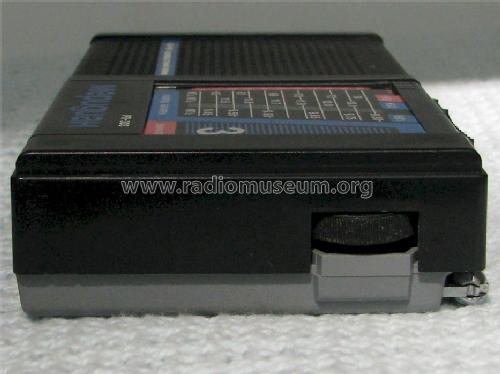

Meridian - Меридиан RP-303 - РП-303

Meridian - Меридиан RP-303 - РП-303; Kiev Radio Works, (ID = 1499283) Radio Meridian - Меридиан RP-303 - РП-303; Kiev Radio Works, (ID = 1499284) Radio
Meridian - Меридиан RP-303 - РП-303; Kiev Radio Works, (ID = 1499285) Radio Meridian - Меридиан RP-303 - РП-303; Kiev Radio Works, (ID = 1499286) Radio
Meridian - Меридиан RP-303 - РП-303; Kiev Radio Works, (ID = 1499287) Radio Meridian - Меридиан RP-303 - РП-303; Kiev Radio Works, (ID = 1499288) Radio
Meridian - Меридиан RP-303 - РП-303; Kiev Radio Works, (ID = 1499290) Radio
Use red slider bar for more.
Meridian - Меридиан RP-303 - РП-303; Kiev Radio Works, (ID = 1499283) Radio
Kiev Radio Works,: Meridian - Меридиан RP-303 - РП-303 [Radio] ID = 1499283 933x658

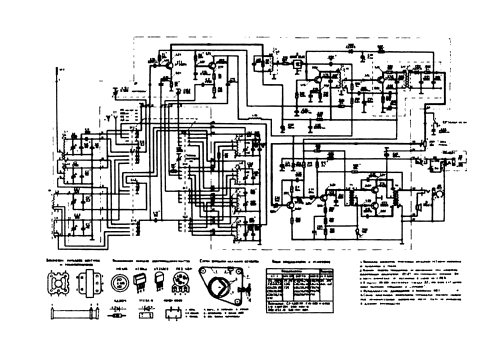

Select picture or schematic to display from thumbnails on the right and click for download.
For model Meridian - Меридиан RP-303 - РП-303, Kiev Radio Works, Kiev:
Ebay auction skystarus 251300589922

Country:  Soviet Union
Manufacturer / Brand:  Kiev Radio Works, Kiev
Year: 1993/1994 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Short Wave (SW) and FM or UHF.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.05 W (0.1 W max.)
from Radiomuseum.org Model: Meridian - Меридиан RP-303 - РП-303 - Kiev Radio Works, Kiev
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 153 x 77 x 28 mm / 6 x 3 x 1.1 inch
Notes
The portable transistor receiver "Meridian RP-303" - is intended for reception broadcasting stations with amplitude modulation (AM) in the  broadcasting ranges of


SW1 -         9,5... 9,8  MHz,
SW2 -       11,7... 12,1 MHz


and
FM VHF -  65,8...74,0 MHz.

Sensitivity of the receiver in the ranges:  SW - 0,6 mV/m, VHF- 0,2 mV/m.

Selectivity on the next to the channel not less than 26 dB.  Range of reproduced sound frequencies not already - 450...  3150 Hz.
Net weight (2.2 lb = 1 kg) 0.240 kg / 0 lb 8.5 oz (0.529 lb)
Collectors' prices

Model page created by a member from A. See "Data change" for further contributors.
