For model Meridian {Меридиан} RP-408 {РП-408}, Kiev Radio Works, Kiev

Country:  Soviet Union
Manufacturer / Brand:  Kiev Radio Works, Kiev
Year: 1988 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 1:
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch
Power out 0.15 W (unknown quality)
from Radiomuseum.org Model: Meridian {Меридиан} RP-408 {РП-408} - Kiev Radio Works, Kiev
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 77 x 140 x 32 mm / 3 x 5.5 x 1.3 inch

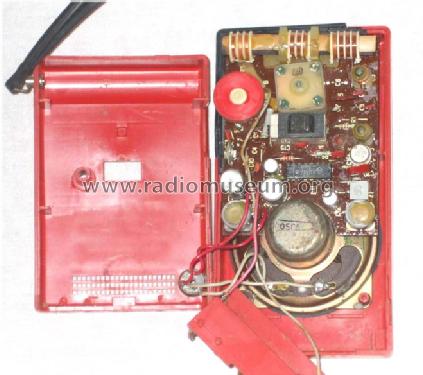

Notes 1 Transistor im Mischer, ZF und NF über IC (siehe Foto). Lautsprecher 0,25 W, 8 Ohm. Anschluß für Ohrhörer.
Identical as Meridian RP-308 (see in RMorg)
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Price in first year of sale 27.00 Rubel
Collectors' prices
Source of data - - Data from my own collection

Model page created by Wolfgang Lill. See "Data change" for further contributors.
