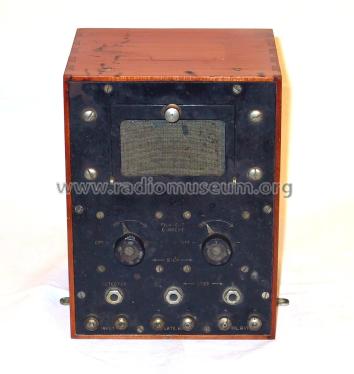

Two-Step Amplifier Type SE 1000F

Kilbourne & Clark Mfg. Co.; Seattle, Washington

Data
Forum
Pictures
Collections

  • Year
  • 1922
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 253526

 Technical Specifications

  • Number of Tubes
  • 2
  • Valves / Tubes
  • Main principle
  • Audio-Amplification; 2 AF stage(s)
  • Wave bands
  • - without
  • Power type and voltage
  • Storage and/or dry batteries
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Two-Step Amplifier Type SE 1000F - Kilbourne & Clark Mfg. Co.;
  • Shape
  • Tablemodel, Box - most often with Lid (NOT slant panel).
  • Dimensions (WHD)
  • 7 x 9.5 x 6 inch / 178 x 241 x 152 mm
  • Notes

  • The SE 1000F was designed by the Navy's Steam Engineering Radio Test Shop, hence the "SE" prefix in the model number.  SE 1000 amplifiers were built by multiple vendors, including NESCO. This particular example was built by Kilbourne & Clark of Seattle, Washington.

  • Author
  • Model page created by Alan Larsen. See "Data change" for further contributors.
