Ferrotune Four (4)

Ferrotune Four ; Radio and Hobbies, (ID = 1668063) Radio
Ferrotune Four ; Radio and Hobbies, (ID = 2088713) Radio Ferrotune Four ; Radio and Hobbies, (ID = 2088724) Radio
Ferrotune Four ; Radio and Hobbies, (ID = 2088720) Radio Ferrotune Four ; Radio and Hobbies, (ID = 1667534) Radio
Ferrotune Four ; Radio and Hobbies, (ID = 1667536) Radio
Use red slider bar for more.
Ferrotune Four ; Radio and Hobbies, (ID = 2088713) Radio
Radio and Hobbies,: Ferrotune Four [Radio] ID = 2088713 1400x744
Select picture or schematic to display from thumbnails on the right and click for download.
For model Ferrotune Four (4), Radio and Hobbies, Radio Television & Hobbies, Electronics Australia magazine; Sydney:
My own collection

Country:  Australia
Manufacturer / Brand:  Radio and Hobbies, Radio Television & Hobbies, Electronics Australia magazine; Sydney
Year: 1946 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH35 EBF35 EL3NG 5Y3G
Main principle Superheterodyne (common); ZF/IF 455 kHz; 1 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Ferrotune Four - Radio and Hobbies, Radio
Notes

The Ferrotune Four was a Radio & Hobbies adaptation of Kingsley Radio's KFT3.

The Radio & Hobbies version is based around the Kingsley KFT3 Foundation Kit (consisting of the chassis, tuning mechanism & I.F. coils only) with some minor changes around the converter valve. This version uses a ECH35 converter instead of a 6J8G. The triode-hexode ECH35 here and the triode-heptode 6J8G of the other kit have different operating data and characteristics.

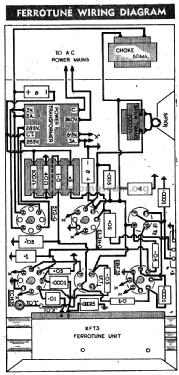

Five pages of circuit & constructional details are given in a article in the November 1946 issue of Radio & Hobbies. The schematic was drawn by the late Neville Williams.



Literature/Schematics (1) Radio & Hobbies, November 1946

Model page created by Gary Cowans. See "Data change" for further contributors.
