KM101 Ch= K8

KM101 Ch= K8; Kingsley Brand: (ID = 1678277) Radio KM101 Ch= K8; Kingsley Brand: (ID = 1678279) Radio
KM101 Ch= K8; Kingsley Brand: (ID = 1678280) Radio KM101 Ch= K8; Kingsley Brand: (ID = 1678282) Radio
KM101 Ch= K8; Kingsley Brand: (ID = 1678283) Radio
Use red slider bar for more.
KM101 Ch= K8; Kingsley Brand: (ID = 1678277) Radio
Kingsley Brand:: KM101 Ch= K8 [Radio] ID = 1678277 930x421
Select picture or schematic to display from thumbnails on the right and click for download.
For model KM101 Ch= K8, Kingsley (Brand): various manufacturers, one at a time:
Regrettably, the fascia is cracked and the red markings indicating regional stations have faded almost into oblivion.

Country:  Australia
Manufacturer / Brand:  Kingsley (Brand): various manufacturers, one at a time
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast only (MW).
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: KM101 Ch= K8 - Kingsley Brand: various
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel without bush buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 13 x 6 x 3.25 inch / 330 x 152 x 83 mm
Notes

The transistors and diodes (x 3) are branded with the Fairchild logo.

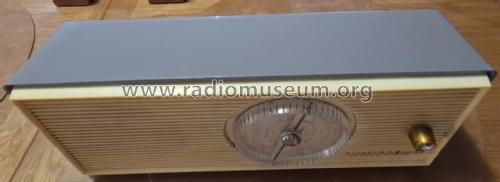

Colours available in Charm Grey, Deep Cocoa & Burnt Orange.

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Price in first year of sale 29.95 AUS $

Model page created by Brian Wilson. See "Data change" for further contributors.
