Moderator 60-75

Moderator 60-75; Kirksaeter, (ID = 112808) Radio Moderator 60-75; Kirksaeter, (ID = 112809) Radio

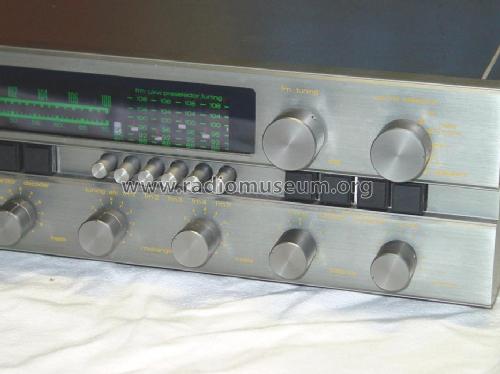

Moderator 60-75; Kirksaeter, (ID = 112810) Radio Moderator 60-75; Kirksaeter, (ID = 112811) Radio
Use red slider bar for more.
Moderator 60-75; Kirksaeter, (ID = 112808) Radio
Kirksaeter,: Moderator 60-75 [Radio] ID = 112808 933x394
Select picture or schematic to display from thumbnails on the right and click for download.
For model Moderator 60-75, Kirksaeter, Düsseldorf

Country:  Germany
Manufacturer / Brand:  Kirksaeter, Düsseldorf
Brand

Audioson
Year: 1975 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Super-Heterodyne (Super in general)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Moderator 60-75 - Kirksaeter, Düsseldorf
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 490 x 135 x 340 mm / 19.3 x 5.3 x 13.4 inch
Notes 6 LS-Buchsen, Quadrophonie. Eingänge 2x Tape, 2x Phono, Aux, Equalizer-Echo. 6 UKW-Stationstasten. Gerät in Handarbeit hergestellt, Frontplatte Aluminium gebürstet.
Net weight (2.2 lb = 1 kg) 10 kg / 22 lb 0.4 oz (22.026 lb)
Source of data Radiokatalog Band 2, Ernst Erb

Model page created by Peter Böhm. See "Data change" for further contributors.



All listed radios etc. from Kirksaeter, Düsseldorf
Here you find 16 models, 15 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
