• Country
• Germany

• Manufacturer / Brand
• Kirksaeter, Düsseldorf

• Year
• 1967

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 157235

• • Brand: Audioson

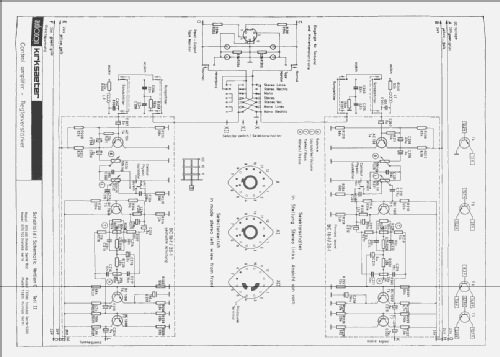

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 35

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 90 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: TX800 - Kirksaeter, Düsseldorf

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 135 x 260 mm / 16.5 x 5.3 x 10.2 inch

• Notes
• Stereo Vollverstärker mit 2 x 45 Watt Sinus an 8 Ohm.
  Rumpel- und Höhenfilter.
  6 Zenerdioden, Si-Brückengleichrichter.

• Net weight (2.2 lb = 1 kg)
• 14 kg / 30 lb 13.4 oz (30.837 lb)

• External source of data
• High Fidelity Jahrbuch 1967/68 Seite 70

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
