Kvarc {Кварц}, Quartz RP-12 {РП-12}

Kvarc {Кварц}, Quartz RP-12 {РП-12}; Kishtim Radio Works (ID = 1651094) Radio Kvarc {Кварц}, Quartz RP-12 {РП-12}; Kishtim Radio Works (ID = 1651096) Radio
Kvarc {Кварц}, Quartz RP-12 {РП-12}; Kishtim Radio Works (ID = 1651098) Radio Kvarc {Кварц}, Quartz RP-12 {РП-12}; Kishtim Radio Works (ID = 1651101) Radio
Use red slider bar for more.
Kvarc {Кварц}, Quartz RP-12 {РП-12}; Kishtim Radio Works (ID = 1651094) Radio

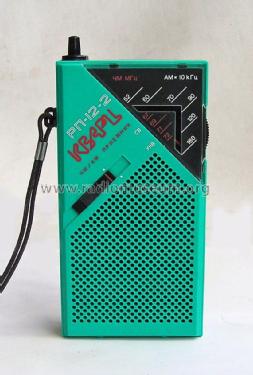

Kishtim Radio Works: Kvarc {Кварц}, Quartz RP-12 {РП-12} [Radio] ID = 1651094 826x1221
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kvarc {Кварц}, Quartz RP-12 {РП-12}, Kishtim Radio Works

Country:  Soviet Union
Manufacturer / Brand:  Kishtim Radio Works
Year: 1991/1992 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general); ZF/IF 455/10700 kHz
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Dry Batteries / 3 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.08 W (unknown quality)
from Radiomuseum.org Model: Kvarc {Кварц}, Quartz RP-12 {РП-12} - Kishtim Radio Works
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 79 x 152 x 28 mm / 3.1 x 6 x 1.1 inch
Notes

Kvarc {Кварц} RP-12 {РП-12}
Dieses Radio wurde in 4 Untervarianten hergestellt.

Wellenbereichen variieren:
RP-12-1:  MW und UKW (88-108 MHz)
RP-12-2:  MW und UKW (65-74 MHz)
RP-12-3:  LW und UKW (88-108 MHz)
RP-12-4:  LW und UKW (65-74 MHz).



Net weight (2.2 lb = 1 kg) 0.290 kg / 0 lb 10.2 oz (0.639 lb)

Model page created by Heiko Harry Hacker. See "Data change" for further contributors.



All listed radios etc. from Kishtim Radio Works
Here you find 12 models, 12 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
