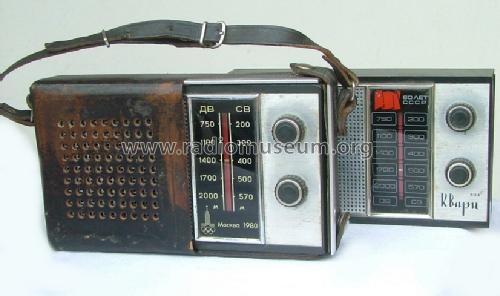

Kvarc {Кварц} [Quartz] 404; Kishtim Radio Works (ID = 414687) Radio
Kishtim Radio Works: Kvarc {Кварц} [Quartz] 404 [Radio] ID = 414687 585x365
Select picture or schematic to display from thumbnails on the right and click for download.
For model Kvarc {Кварц} [Quartz] 404, Kishtim Radio Works:
This set is dedicated for 1980 Moscow Olimpic games

Country:  Soviet Union
Manufacturer / Brand:  Kishtim Radio Works
Year: 1973–1981 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: ГТ309 ГТ309 ГТ309 МП40 МП40 МП40 МП40 Д9
Main principle Super-Heterodyne (Super in general); ZF/IF 465 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Dry Batteries / 9 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 cm = 2 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Kvarc {Кварц} [Quartz] 404 - Kishtim Radio Works
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 7 x 4 x 2.5 inch / 178 x 102 x 64 mm
Net weight (2.2 lb = 1 kg) 0.480 kg / 1 lb 0.9 oz (1.057 lb)
Price in first year of sale 28.00 RUB
Collectors' prices
Source of data -- Collector info (Sammler)

Model page created by a member from A. See "Data change" for further contributors.



All listed radios etc. from Kishtim Radio Works
Here you find 12 models, 12 with images and 4 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
