• Country
• Spain

• Manufacturer / Brand
• Klarmax-Radio; Asencio Quirant Gonzálvez; Elche

• Year
• 1965 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 206659

• Number of Tubes
• 5

• Valves / Tubes
• UCH81 UF89 UBC41 UL84 UY85

• Main principle
• Superheterodyne (common)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• AC/DC-set

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Wooden case

• from Radiomuseum.org

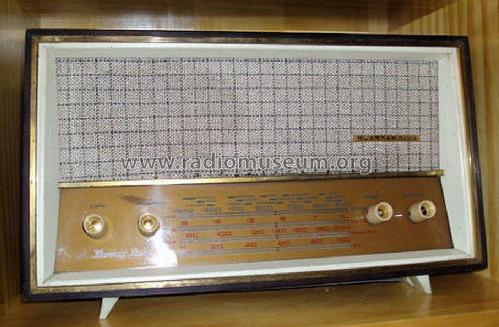

• Model: KL-70 - Klarmax-Radio; Asencio Quirant

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 400 x 235 x 170 mm / 15.7 x 9.3 x 6.7 inch

• Net weight (2.2 lb = 1 kg)
• 3.250 kg / 7 lb 2.5 oz (7.159 lb)

• Author
• Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
