• Country
• Spain

• Manufacturer / Brand
• Klarmax-Radio; Asencio Quirant Gonzálvez; Elche

• Year
• 1955 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 264730

• Number of Tubes
• 5

• Valves / Tubes
• UCH42 unknown_Tube UAF42 UL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 110 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: XXI-P - Klarmax-Radio; Asencio Quirant

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 340 x 200 x 170 mm / 13.4 x 7.9 x 6.7 inch

• Notes

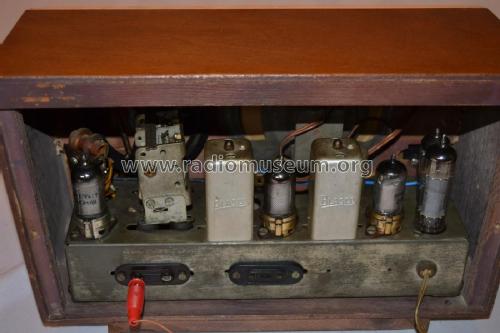

• Coils marked Blasco.

• Author
• Model page created by Juan Jose Roncal. See "Data change" for further contributors.
