• Country
• Germany

• Manufacturer / Brand
• Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)

• Year
• 1987

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 265337

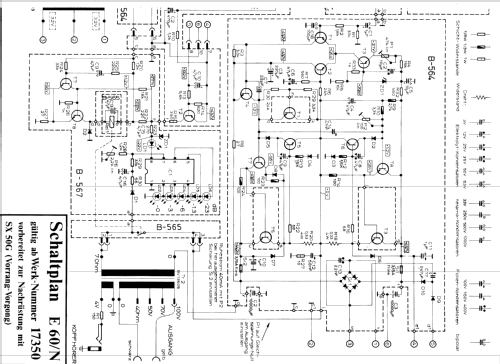

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 60 W (80 W max.)

• Material
• Metal case

• from Radiomuseum.org
• Model: HiFi Mono Mischverstärker E 60/N - Klein & Hummel; Stuttgart-

• Shape
• Book-shelf unit.

• Notes

• Hi-Fi Mono-Mischverstärker,

  5 Eingänge, separat regelbar und individuell mit Einsteckprints bestückbar, XLR-Buchse,

  Ausgang 4Ω / 50V / 70V / 100V,

  Trennbuchse zum Einschleifen von zusätzlichen Effektgeräten,

  Aussteuerunganzeige mit LED-Zeile.



• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
