Telewatt A120E

Telewatt A120E; Klein & Hummel; (ID = 407275) Ampl/Mixer

Telewatt A120E; Klein & Hummel; (ID = 407278) Ampl/Mixer
Telewatt A120E; Klein & Hummel; (ID = 371769) Ampl/Mixer Telewatt A120E; Klein & Hummel; (ID = 371770) Ampl/Mixer
Telewatt A120E; Klein & Hummel; (ID = 729794) Ampl/Mixer
Use red slider bar for more.

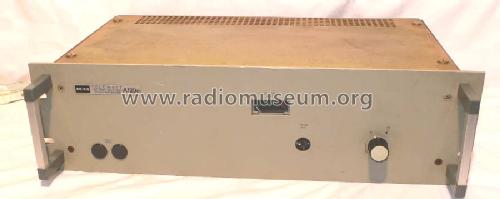

Telewatt A120E; Klein & Hummel; (ID = 371769) Ampl/Mixer
Klein & Hummel;: Telewatt A120E [Ampl/Mixer] ID = 371769 900x359
Select picture or schematic to display from thumbnails on the right and click for download.
For model Telewatt A120E, Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)

Country:  Germany
Manufacturer / Brand:  Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)
Year: 1975 ?? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 160 W (unknown quality)
from Radiomuseum.org Model: Telewatt A120E - Klein & Hummel; Stuttgart-
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 445 x 130 x 260 mm / 17.5 x 5.1 x 10.2 inch
Notes Mono-Endstufe, 100 V-Ausgang.
Net weight (2.2 lb = 1 kg) 12.3 kg / 27 lb 1.5 oz (27.093 lb)

Model page created by Peter Böhm. See "Data change" for further contributors.
