Telewatt Mono-Endverstärker AK 240

Telewatt Mono-Endverstärker AK 240; Klein & Hummel; (ID = 428719) Ampl/Mixer
Use red slider bar for more.
Telewatt Mono-Endverstärker AK 240; Klein & Hummel; (ID = 428719) Ampl/Mixer

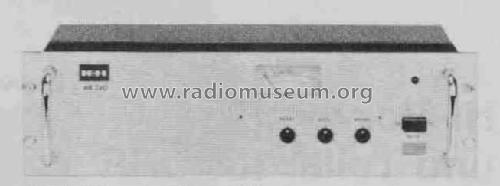

Klein & Hummel;: Telewatt Mono-Endverstärker AK 240 [Ampl/Mixer] ID = 428719 653x243
Select picture or schematic to display from thumbnails on the right and click for download.
For model Telewatt Mono-Endverstärker AK 240, Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio):

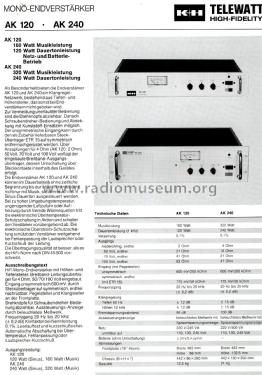

Fujnkschau 3.1980

Country:  Germany
Manufacturer / Brand:  Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)
Year: 1980 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
schematic requested
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 130; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 240 W (unknown quality)
from Radiomuseum.org Model: Telewatt Mono-Endverstärker AK 240 - Klein & Hummel; Stuttgart-
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 442 x 130 x 350 mm / 17.4 x 5.1 x 13.8 inch
Notes 320 Watt Musikleistung, 240 Watt Sinusleistung, 100-Volt-Übertrager eingebaut. Die Abmessungen beziehen sich auf das Chassis. Frontplatte in 19"-Norm mit 3 HE.
Net weight (2.2 lb = 1 kg) 21 kg / 46 lb 4.1 oz (46.256 lb)
Price in first year of sale 1'875.00 DM
Mentioned in Funkschau (3.1980)

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
