• Country
• Germany

• Manufacturer / Brand
• Klein & Hummel; Stuttgart-Kemnat (Marke: K+H, Telewatt, Schwabenradio)

• Year
• 2000 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 258497

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Powered by external power supply or a main unit.

• Loudspeaker
• - For headphones or amp.

• Material
• Printed Circuit Board

• from Radiomuseum.org
• Model: Vorverstärker-Einsteckprints SX-Serie SX 100 - Klein & Hummel; Stuttgart-

• Shape
• Chassis only or for «building in»

• Notes

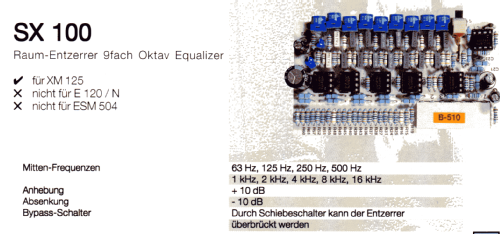

• Einsteckprint für Raum-Entzerrer, 9fach Oktav Equalizer.

  Geeignet für das Gerät XM 125,

  Die Stromversorgung übernimmt das jeweilige Grundgerät.

• Mentioned in
• -- Original prospect or advert

• Author
• Model page created by a member from D. See "Data change" for further contributors.
