• Year
  • 1967 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 98490
    • Brand: Klemt-Echolette

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 130; 150; 220; 240; 250 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 65 W (unknown quality)
  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org

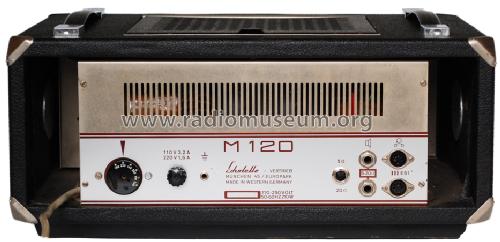

  • Model: Echolette M120 - Echolette Marke / brand;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 430 x 150 x 245 mm / 16.9 x 5.9 x 9.6 inch
  • Notes
  • wie M80, jedoch moderneres Gehäuse.
  • Net weight (2.2 lb = 1 kg)
  • 11 kg / 24 lb 3.7 oz (24.229 lb)
