Guitar Amplifier Rock 50-R
Klingenthaler Harmonikawerke, VEB; Klingenthal (Sachsen) (Vermona)
- Country
- Germany
- Manufacturer / Brand
- Klingenthaler Harmonikawerke, VEB; Klingenthal (Sachsen) (Vermona)
- Year
- 1988
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 227396
-
- alternative name: Musikelektronik Klingenthal (VEB) (Ostd.)
- Number of Transistors
- 15
- Semiconductors
- SC239 SC238 SC238 SC239 SC237 SC237 SF828 SF116 SF118 KD606 KD606 SC238 SC238 SC237 SD339 SY360 SY360 Diode_LED
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Guitar Amplifier
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12 inch = 30.5 cm
- Power out
- 50 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Guitar Amplifier Rock 50-R - Klingenthaler Harmonikawerke,
- Shape
- Console with any shape - in general
- Dimensions (WHD)
- 465 x 610 x 310 mm / 18.3 x 24 x 12.2 inch
- Notes
-

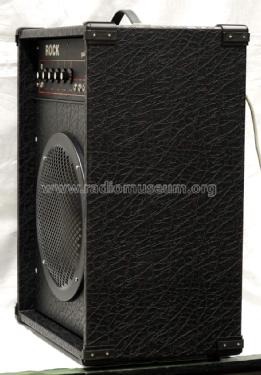

Koffer-Gitarrenverstärker mit 12" Lautsprecher Guitar Amplifier Rock 50-R;
Eingebauter Federhall (Reverb), stufenlos regelbar, absteckbar.
2 Eingänge hoch- und niederpegelig. Regler für Gain, Treble, Bass, Volume.
Ausgänge: Slave Out, Phones.
Lautsprecherchassis: L3512, Impedanz 8Ω, 50VA Belastbarkeit, Gußkorb.
Nettovolumen Lautsprecher-Kammer etwa 42 Liter
Leistungsaufnahme max. 60VA, Netz-Sicherung 0,4A
Herstellung: VEB Musikelektronik Klingenthal.
- Net weight (2.2 lb = 1 kg)
- 21 kg / 46 lb 4.1 oz (46.256 lb)
- Author
- Model page created by Bernhard Nagel. See "Data change" for further contributors.
