Knight 100 KC Crystal Calibrator

Knight 100 KC Crystal Calibrator ; Allied Radio Corp. (ID = 1001050) Equipment Knight 100 KC Crystal Calibrator ; Allied Radio Corp. (ID = 487288) Equipment
Knight 100 KC Crystal Calibrator ; Allied Radio Corp. (ID = 1001049) Equipment Knight 100 KC Crystal Calibrator ; Allied Radio Corp. (ID = 1987239) Equipment
Use red slider bar for more.
Knight 100 KC Crystal Calibrator ; Allied Radio Corp. (ID = 1001050) Equipment
Allied Radio Corp.: Knight 100 KC Crystal Calibrator [Equipment] ID = 1001050 480x640
Select picture or schematic to display from thumbnails on the right and click for download.
For model Knight 100 KC Crystal Calibrator, Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)

Country:  United States of America (USA)
Manufacturer / Brand:  Allied Radio Corp. (Knight, Roamer, Wextark); Chicago (IL)
Year: 1960 Category: Service- or Lab Equipment
Valves / Tubes 1: 6AK6
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Powered by external power supply or a main unit. / 6,3 & ? Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Knight 100 KC Crystal Calibrator - Allied Radio Corp. Knight,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 65 x 40 x 45 mm / 2.6 x 1.6 x 1.8 inch
Notes

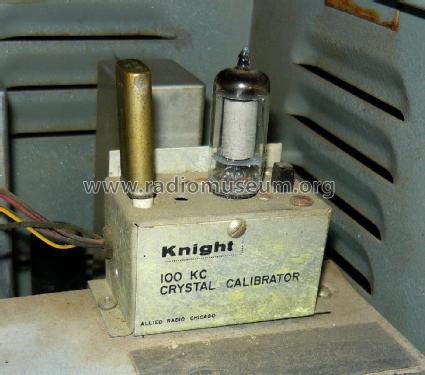

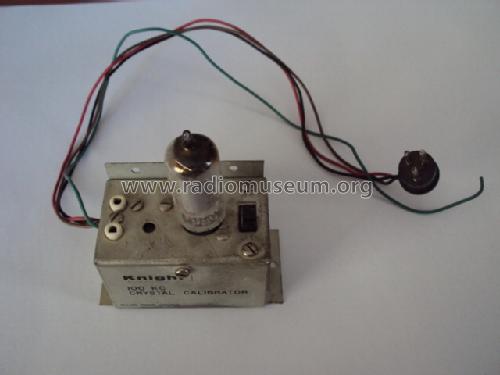

Knight 100 KC Crystal Calibrator.

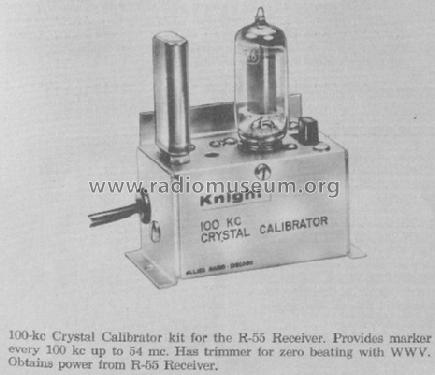

Calibrator kit provides marker every 100 kc up to 54 mc. Suitable to R-55 & R-55A receivers. 83Y256 stock number. Could be easly connected to all communication receivers, quite similar in principle and operation with Hallicrafters HA-19 Crystal Calibrator.

See Hammarlund HQ-129-X.

Net weight (2.2 lb = 1 kg) 0.2 kg / 0 lb 7 oz (0.441 lb)
Price in first year of sale 11.00 $
Source of data -- Original-techn. papers.

Model page created by a member from A. See "Data change" for further contributors.
