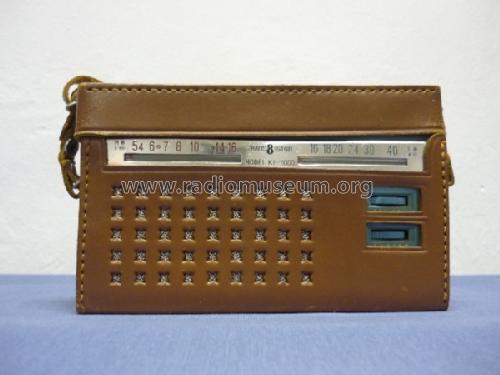

TEN brand, Kobe: KT1000 [Radio] ID = 403299 757x500
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1962/1963 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 8: |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz; 4 AF stage(s) |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Dry Batteries / 6 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch |
| Power out | 0.3 W (unknown quality) |
| from Radiomuseum.org | Model: KT1000 - TEN brand, Kobe Kogyo |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 160 x 92 x 37 mm / 6.3 x 3.6 x 1.5 inch |
| Notes | Le cadre ferrite est au dessus du poste, et il est orientable (gonio). Commutation local distance. |
| Net weight (2.2 lb = 1 kg) | 0.4 kg / 0 lb 14.1 oz (0.881 lb) |
| Price in first year of sale | 160.00 FF |
Model page created by Olivier Palix. See "Data change" for further contributors.
