• Country
• United States of America (USA)

• Manufacturer / Brand
• Kodak - Eastman Kodak Company; Rochester (NY)

• Year
• 1954 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 310409

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AX7 12AX7 6V6 6V6 5Y3

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Video-Taperecorder/-Player

• Power type and voltage
• Alternating Current supply (AC) / 105-125 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 15 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

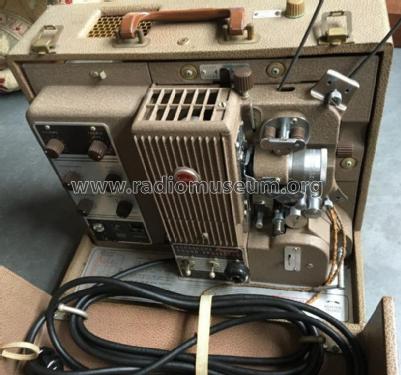

• Model: Kodascope Pageant AV-151 - Kodak - Eastman Kodak Company;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 395 x 328 x 265 mm / 15.6 x 12.9 x 10.4 inch

• Notes

• Following Victor Animatograph Corporation and Bell and Howell, Kodak first introduced a 16mm projector under the name Kodascope in 1923. Kodascope remained the primary name for 16mm projectors throughout the years.

  The AV-151 features a 15 watt tube amplifier with a 6V6 push-pull configuration. Other models that are similar in many aspects are the AV-154, AV-154S and AV-255S, though these feature a tube amplifier with 6L6 output tubes.

  Power consumed by projector and amplifier: on 115-volt power line 950 watts with a 750 - watt projection lamp; 1200 watts with a 1 000-watt projection lamp

  Projection lamp: 750-watt, 115-volt, T-12 bulb, C-130 filament, medium pre - focused base; or 1 000-watt 115-volt, T-1 2 bulb, C-130 filament, medium prefocused base, 1 0-hour rating

  Exciter lamp: 20 A/ T5 / 20CP , 7-volt, 0.2 amps

  Phototube: Cetron, CE-25, Class C

• Author
• Model page created by Erik van Haeringen. See "Data change" for further contributors.
