• Country
• Germany

• Manufacturer / Brand
• König Electronic GmbH; Reichelsheim

• Year
• 1995 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 143851

• Number of Tubes
• 1

• Valves / Tubes
• M14-120A1W

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Line / Storage batteries (perhaps also batteries) / 95-250 /12 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

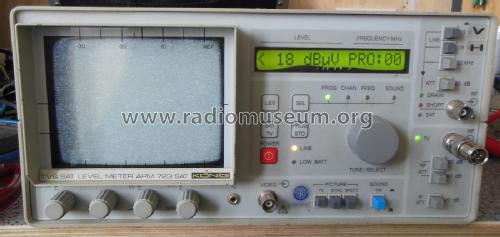

• Model: Antennenmeßgerät APM 723 SAT - König Electronic GmbH;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 305 x 145 x 334 mm / 12 x 5.7 x 13.1 inch

• Notes
• Antennenmeßgerät APM 723 SAT (5771),Frequenzbereich 47 MHz bis 2050 MHz, Spektrumanalysator, Pegelmessung, 64 Speicherplätze, Digitaler Synthesizer, 5-stellige Digital- Frequenzanzeige, Bildschirm 5,2 Zoll (13 cm), Eingebauter 12 V/6 Ah Akku.

• Net weight (2.2 lb = 1 kg)
• 10.5 kg / 23 lb 2 oz (23.128 lb)

• Mentioned in
• -- Original prospect or advert (König Katalog 1/1995)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
