Pocket Generator F-111
Use red slider bar for more.

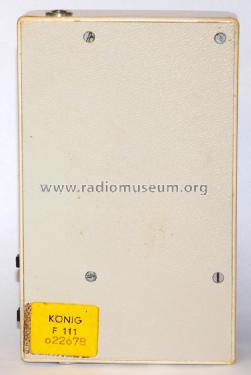

König Electronic: Pocket Generator F-111 [Equipment] ID = 2312083 933x1513
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1980 ? | Category: Service- or Lab Equipment | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Wave bands | Wave Bands given in the notes. |
|---|---|
| Details | |
| Power type and voltage | Dry Batteries |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Pocket Generator F-111 - König Electronic GmbH; |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 131 x 81 x 23 mm / 5.2 x 3.2 x 0.9 inch |
| Notes | ICs: 19 Farbgenerator, 10 verschiedene Farb- und Schwarzweiss-Testbilder, HF-Ausgang 80 dB/µV, Arbeitsbereich Kanal 5 bis 12 (VHF), Kanal 21 bis 31 (UHF), 5,5-MHz-Tonträger mit 650-Hz-Testton moduliert, umschalter für PAL/BW. |
| Net weight (2.2 lb = 1 kg) | 0.3 kg / 0 lb 10.6 oz (0.661 lb) |
| Mentioned in | Funkschau (7.1980) |
Model page created by Karlheinz Fischer. See "Data change" for further contributors.
