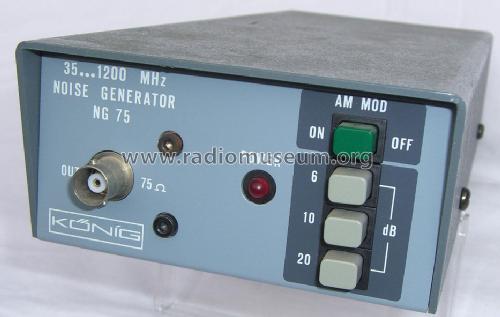

Rauschgenerator NG 75

König Electronic GmbH; Reichelsheim

  • Year
  • 1988 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 211355

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Rauschgenerator NG 75 - König Electronic GmbH;
  • Dimensions (WHD)
  • 100 x 50 x 200 mm / 3.9 x 2 x 7.9 inch
  • Notes
  • Rauschgenerator mit einem Frequenzbereich von 35 - 1200 MHz.75 Ohm-Ausgang, BNC. Eine Amplitudenmodulation 1 kHz kann zugeschaltet werden. Abschwächer 6,10 und 20 dB.Ausgangspegel 90 dBµV - weißes Rauschen.
  • Net weight (2.2 lb = 1 kg)
  • 1.1 kg / 2 lb 6.8 oz (2.423 lb)
  • Author
  • Model page created by Volker MARTIN. See "Data change" for further contributors.
