• Country
• Germany

• Manufacturer / Brand
• König Electronic GmbH; Reichelsheim

• Year
• 1965 ??

• Category
• Radio part (not a module)

• Radiomuseum.org ID
• 311723

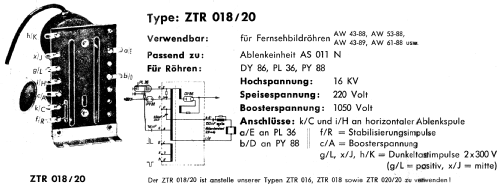

Click on the schematic thumbnail to request the schematic as a free document.

• Power type and voltage
• Powered by external power supply or a main unit. / DC 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org

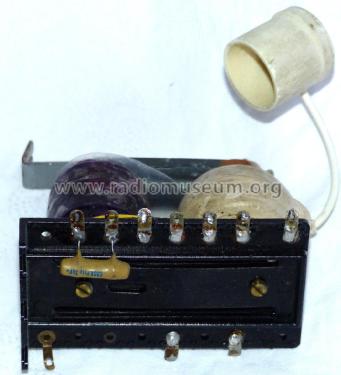

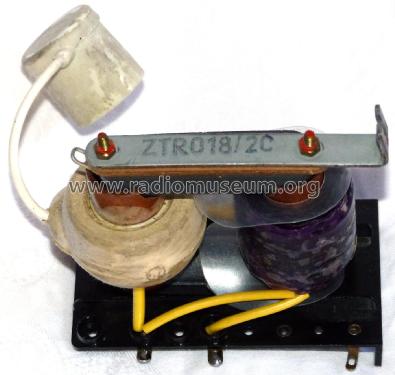

• Model: Zeilentrafo ZTR 018-20 - König Electronic GmbH;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 90 x 90 x 50 mm / 3.5 x 3.5 x 2 inch

• Notes

• für Fernsehbildröhren 110°
  für Ablenkeinheit 110° mit 3 mH Horizontal-Induktivität
  für Röhren DY86, PL36, PY88
  Boosterspannung 1050 V
  Hochspannung 16 KV

• Net weight (2.2 lb = 1 kg)
• 0.287 kg / 0 lb 10.1 oz (0.632 lb)

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
