B3

B3; Koldberg, Skagmo Co. (ID = 2532775) Radio
B3; Koldberg, Skagmo Co. (ID = 2532777) Radio B3; Koldberg, Skagmo Co. (ID = 2532780) Radio
B3; Koldberg, Skagmo Co. (ID = 2532778) Radio B3; Koldberg, Skagmo Co. (ID = 2532779) Radio
B3; Koldberg, Skagmo Co. (ID = 368752) Radio B3; Koldberg, Skagmo Co. (ID = 2606274) Radio
B3; Koldberg, Skagmo Co. (ID = 2606275) Radio B3; Koldberg, Skagmo Co. (ID = 2606278) Radio
Use red slider bar for more.

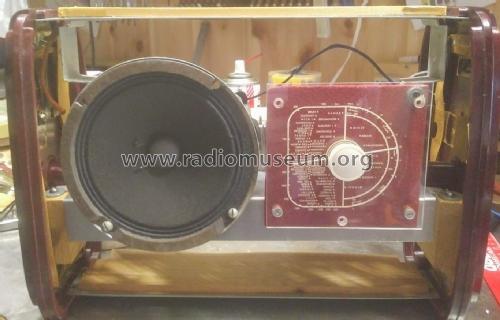

B3; Koldberg, Skagmo Co. (ID = 2532777) Radio
Koldberg, Skagmo Co.: B3 [Radio] ID = 2532777 888x653
Select picture or schematic to display from thumbnails on the right and click for download.
For model B3, Koldberg, Skagmo Co.

Country:  Norway
Manufacturer / Brand:  Koldberg, Skagmo Co.
Year: 1951 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 1F3 1C1 1F3 1FD9 1P11
Main principle Superheterodyne (common); ZF/IF 452 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Dry Batteries / 90/1.5 Volt
Loudspeaker Presumably Dynamic Loudspeaker (moving coil) / Ø 12 cm = 4.7 inch
Power out
from Radiomuseum.org Model: B3 - Koldberg, Skagmo Co.
Dimensions (WHD) 315 x 240 x 90 mm / 12.4 x 9.4 x 3.5 inch
Price in first year of sale 385.00 NKr.

Model page created by Ernst Rykkje. See "Data change" for further contributors.



All listed radios etc. from Koldberg, Skagmo Co.
Here you find 2 models, 2 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
