KB 163; Kolster Brandes Ltd. (ID = 478883) Radio

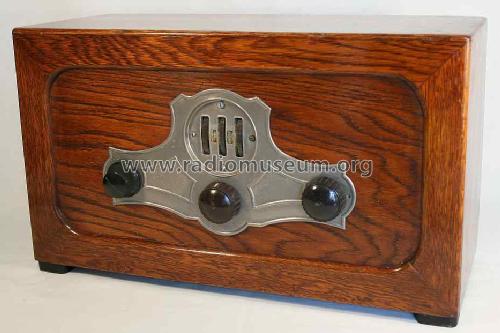

Kolster Brandes Ltd.: KB 163 [Radio] ID = 478883 933x622
Select picture or schematic to display from thumbnails on the right and click for download.
For model KB 163, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1929 perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: PM12 PM1HF PM22
Main principle TRF with regeneration
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: KB 163 - Kolster Brandes Ltd. KB, K.B.,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 18 x 11 x 8 inch / 457 x 279 x 203 mm
Notes

Later version of model KB 102 also using screen grid valves, and with Dual Control. The 102 has a single tuning control the 163 has dual tuning controls.

Some sets show a plate in front of the sales organisation like "Lloyd & Lloyd, Ironmongery & Agricl. Engineers. Motor & Cycle Factors, Newtown, Mid. Wales." This has not to do with the manuafcturer Kolster Brandes - but we keep this in the model text so that somebody looking with SEARCH will find it.

Mentioned in - - Manufacturers Literature (Date given in KB Schedule of Products)

Model page created by Mike Edwards. See "Data change" for further contributors.
