KB 383; Kolster Brandes Ltd. (ID = 2289338) Radio

KB 383; Kolster Brandes Ltd. (ID = 2289343) Radio

KB 383; Kolster Brandes Ltd. (ID = 2289344) Radio

KB 383; Kolster Brandes Ltd. (ID = 2289345) Radio

KB 383; Kolster Brandes Ltd. (ID = 2289346) Radio

KB 383; Kolster Brandes Ltd. (ID = 2289347) Radio

KB 383; Kolster Brandes Ltd. (ID = 2289348) Radio

KB 383; Kolster Brandes Ltd. (ID = 2289349) Radio

KB 383; Kolster Brandes Ltd. (ID = 2289351) Radio

KB 383; Kolster Brandes Ltd. (ID = 2289352) Radio
KB 383; Kolster Brandes Ltd. (ID = 1870605) Radio KB 383; Kolster Brandes Ltd. (ID = 2119843) Radio
Use red slider bar for more.
KB 383; Kolster Brandes Ltd. (ID = 1870605) Radio
Kolster Brandes Ltd.: KB 383 [Radio] ID = 1870605 800x1393
Select picture or schematic to display from thumbnails on the right and click for download.
For model KB 383, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB:

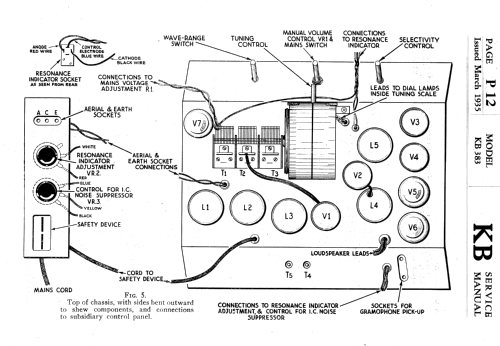

Image from service manual

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: 15D1 9D2 11D3 8D2 7D3 7D3 1D5_rectifier
Main principle Super-Heterodyne (Super in general); ZF/IF 130 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 200-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 21.3 cm = 8.4 inch
Power out 4 W (undistorted)
from Radiomuseum.org Model: KB 383 - Kolster Brandes Ltd. KB, K.B.,
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 508 x 680 x 300 mm / 20 x 26.8 x 11.8 inch
Notes

Same chassis as KB383A but with controls mounted on the top panel under the lid.
One Loudspeaker; 213mm electrodynamic.
With Osram neon indicator.
Two 7D3 output pentode valves in parallel.

Mains safety cut out when rear panel is removed.

Net weight (2.2 lb = 1 kg) 48 lb (48 lb 0 oz) / 21.792 kg
Price in first year of sale 250.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman

Model page created by John Koster. See "Data change" for further contributors.
