KB 427

KB 427; Kolster Brandes Ltd. (ID = 1023813) Radio

KB 427; Kolster Brandes Ltd. (ID = 1023814) Radio

KB 427; Kolster Brandes Ltd. (ID = 1023815) Radio
KB 427; Kolster Brandes Ltd. (ID = 1406703) Radio KB 427; Kolster Brandes Ltd. (ID = 1406704) Radio
KB 427; Kolster Brandes Ltd. (ID = 1406705) Radio
Use red slider bar for more.
KB 427; Kolster Brandes Ltd. (ID = 1406703) Radio
Kolster Brandes Ltd.: KB 427 [Radio] ID = 1406703 815x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model KB 427, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB:

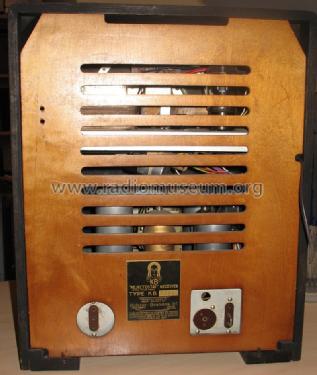

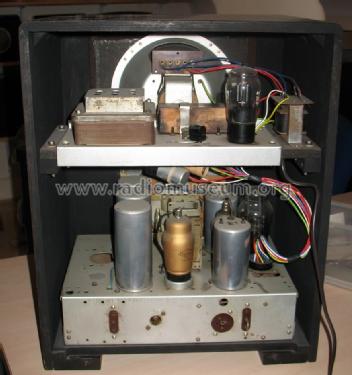

Photos supplied by David Church

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1935/1936 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 15D1 9D2 10D1 Pen4VB R3
Main principle Super-Heterodyne (Super in general); ZF/IF 130 kHz
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: KB 427 - Kolster Brandes Ltd. KB, K.B.,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes Adaptable to the "Rejectostat" aerial-earth system and employs the "Fototune" type of tuning scale.
Price in first year of sale 150.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (56)

Model page created by John Koster. See "Data change" for further contributors.



All listed radios etc. from Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Here you find 368 models, 319 with images and 202 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
