KB 560

KB 560; Kolster Brandes Ltd. (ID = 1035114) Radio

KB 560; Kolster Brandes Ltd. (ID = 1035115) Radio

KB 560; Kolster Brandes Ltd. (ID = 1035116) Radio
KB 560; Kolster Brandes Ltd. (ID = 2134154) Radio
Use red slider bar for more.
KB 560; Kolster Brandes Ltd. (ID = 2134154) Radio
Kolster Brandes Ltd.: KB 560 [Radio] ID = 2134154 1006x794
Select picture or schematic to display from thumbnails on the right and click for download.
For model KB 560, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB:
IMAGE FROM SERVICE MANUAL

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: TH4 9D2 TDD4 7A3 TV4 R2
Main principle Super-Heterodyne (Super in general); ZF/IF 464 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: KB 560 - Kolster Brandes Ltd. KB, K.B.,
Material Wooden case

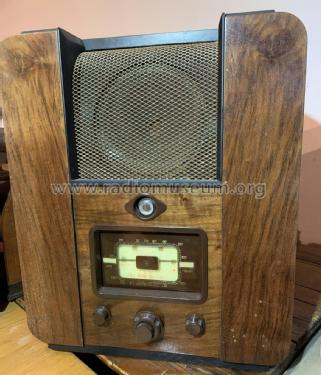

Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Notes The TV4 is an electron beam tuning indicator.
Price in first year of sale 195.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman
Literature/Schematics (1) Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (182)

Model page created by John Koster. See "Data change" for further contributors.
