For model KB 935 (935M), Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB:

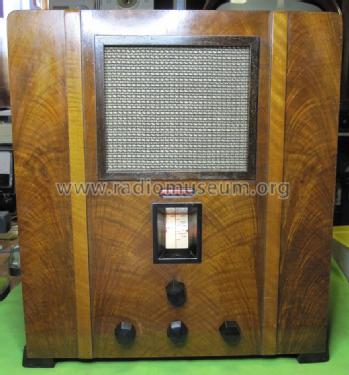

The speaker cloth is not original.

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1934/1935 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: VP4 SP4 VP4 TDD4 Pen4VA IW3
Main principle Super-Heterodyne (Super in general); ZF/IF 130 kHz
Wave bands Broadcast (MW) and Long Wave.

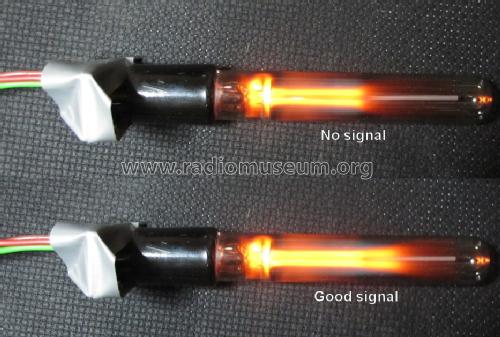

Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 205; 225; 245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out
from Radiomuseum.org Model: KB 935 - Kolster Brandes Ltd. KB, K.B.,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 410 x 475 x 268 mm / 16.1 x 18.7 x 10.6 inch
Notes

Similar to model 666 but with additional neon idicator.

Staleman lists this model as 935M, specifying the same characteristics as KB666 which is listed with 100-250V mains.

Price in first year of sale 185.00 Hfl
Source of data Technisch- Commercieel - Radio Vademecum Staleman

Model page created by John Koster. See "Data change" for further contributors.
