- Country
- Great Britain (UK)
- Manufacturer / Brand
- Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
- Year
- 1947
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 275685

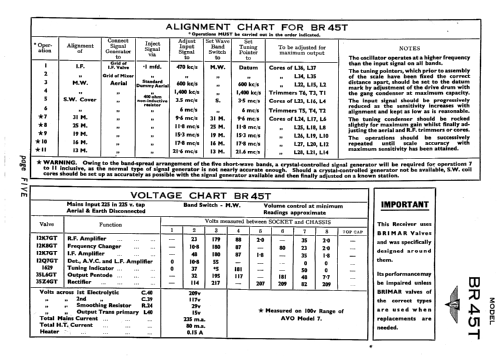

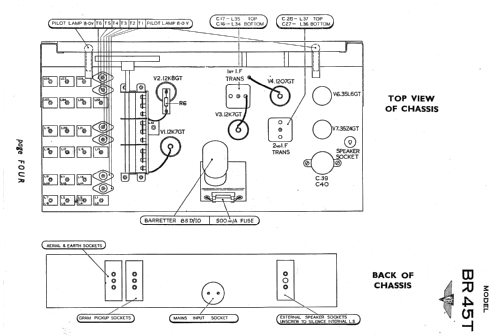

Image from Service information
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 7
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 200-250 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 inch = 20.3 cm
- Power out
- 3 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: BR45T - Kolster Brandes Ltd. KB, K.B.,
- Shape
- Tablemodel, low profile (big size).
- Notes
-
This radio is the export version of the KB BR40
Later models may be fitted with a 1629 tuning indicator
SW bands cover.
SW 40m to 94m (7.5 to 3.2MHz)
31m band (9.85 to 9.35MHz)
25m band (12.1 to 11.5MHz)
19m band (15.69 to 14.95MHz)
16m band (18.2 to 17.4MHz)
13m band (22.1 to 22.0MHz)
- Author
- Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
