• Country
• Great Britain (UK)

• Manufacturer / Brand
• Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 120324

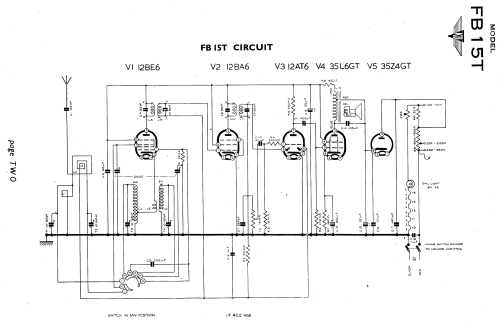

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 35L6 35Z4

• Main principle
• Superheterodyne (common); 2 AF stage(s)

• Tuned circuits
• 2 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• AC/DC-set / 220 Volt

• Loudspeaker
• Presumably Dynamic Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: FB15TA - Kolster Brandes Ltd. KB, K.B.,

• Notes

• see also model KB FB15T

• Source of data
• - - Data from my own collection

• Author
• Model page created by Nigel Hulse. See "Data change" for further contributors.

• Other Models

• Here you find 415 models, 372 with images and 253 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
