Rejectostat De Luxe KB 666B

Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 778929) Radio

Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 778931) Radio

Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 778933) Radio

Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 778934) Radio

Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 1015792) Radio

Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 1015794) Radio

Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 1015798) Radio

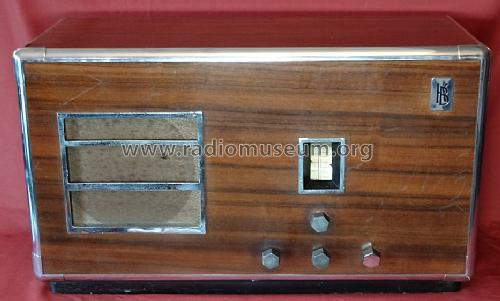

Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 1629356) Radio Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 1629357) Radio
Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 1629358) Radio Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 1629359) Radio
Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 1669910) Radio
Use red slider bar for more.
Rejectostat De Luxe KB 666B; Kolster Brandes Ltd. (ID = 1629356) Radio
Kolster Brandes Ltd.: Rejectostat De Luxe KB 666B [Radio] ID = 1629356 933x649
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rejectostat De Luxe KB 666B, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB:
Photo donated by Roger Webster ebay 111291802173

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1933 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: 9A1 8A1 9A1 11A2 7A2 R2
Main principle Superhet with RF-stage; ZF/IF 130 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Rejectostat De Luxe KB 666B - Kolster Brandes Ltd. KB, K.B.,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 25 x 14.75 x 11.25 inch / 635 x 375 x 286 mm
Notes Cabinet design: Betty Joel. Available with stand. Walnut cabinet, chromium fittings & square speaker aperture. Micromesh valves, alternative Mullard valves are VP4, SP4, VP4, TDD4, Pen4VA, DW3. Same chassis used in models K-B 666, A, & C. Recommended aerial length 75-100 feet with "Rejectostat" system.
Net weight (2.2 lb = 1 kg) 40 lb (40 lb 0 oz) / 18.160 kg
Source of data Radio! Radio!
Literature/Schematics (1) Trader Sheets 13 & 568

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
