Masterpiece KB 348 3 valve

Masterpiece KB 348; Kolster Brandes Ltd. (ID = 2124299) Radio

Masterpiece KB 348; Kolster Brandes Ltd. (ID = 2124300) Radio

Masterpiece KB 348; Kolster Brandes Ltd. (ID = 2124301) Radio

Masterpiece KB 348; Kolster Brandes Ltd. (ID = 2124302) Radio
Masterpiece KB 348; Kolster Brandes Ltd. (ID = 2124372) Radio Masterpiece KB 348; Kolster Brandes Ltd. (ID = 2124373) Radio
Masterpiece KB 348; Kolster Brandes Ltd. (ID = 2124375) Radio Masterpiece KB 348; Kolster Brandes Ltd. (ID = 2124374) Radio
Masterpiece KB 348; Kolster Brandes Ltd. (ID = 2124657) Radio Masterpiece KB 348; Kolster Brandes Ltd. (ID = 2124659) Radio
Masterpiece KB 348; Kolster Brandes Ltd. (ID = 858812) Radio Masterpiece KB 348; Kolster Brandes Ltd. (ID = 858813) Radio

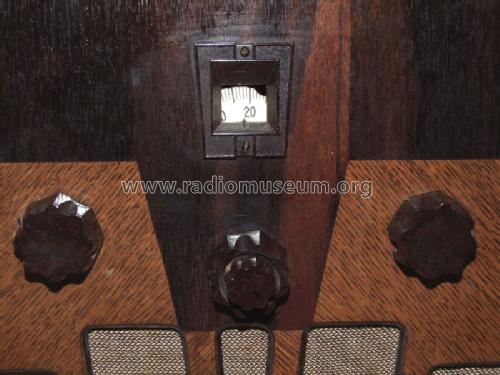

Masterpiece KB 348; Kolster Brandes Ltd. (ID = 858814) Radio Masterpiece KB 348; Kolster Brandes Ltd. (ID = 858815) Radio
Use red slider bar for more.
Masterpiece KB 348; Kolster Brandes Ltd. (ID = 2124372) Radio
Kolster Brandes Ltd.: Masterpiece KB 348 [Radio] ID = 2124372 1200x1511
Select picture or schematic to display from thumbnails on the right and click for download.
For model Masterpiece KB 348 3 valve, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1933/1933 ? perfect model Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: 5B1 or PM12A HLB1 or PM1HL PB1 or PM2A
Main principle TRF (Tuned-Radio-Frequency but use of regeneration unknown)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Storage and/or dry batteries / 2 & 9 & 100 Volt
Loudspeaker Magnetic loudspeaker (reed) generic. / Ø 24 cm = 9.4 inch
Power out
from Radiomuseum.org Model: Masterpiece KB 348 [3 valve] - Kolster Brandes Ltd. KB, K.B.,
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 342 x 420 x 250 mm / 13.5 x 16.5 x 9.8 inch
Notes

Quote Jonathan Hill: "This radio was given away as a "free gift" by the cigarette manufacturers Godfrey Phillips Ltd. in return for their BDV cigarette coupons."

Voltages; HT1 = 70, HT2 = 100, GB1 = -1.5, GB2 = -3 or -4.5

Mentioned in - - Manufacturers Literature
Literature/Schematics (1) Radio! Radio! (1st ed.,p.125, fig.346.)

Model page created by Joe Sousa. See "Data change" for further contributors.
