Minuet OB10

Minuet OB10; Kolster Brandes Ltd. (ID = 2317646) Radio

Minuet OB10; Kolster Brandes Ltd. (ID = 2317647) Radio

Minuet OB10; Kolster Brandes Ltd. (ID = 489524) Radio

Minuet OB10; Kolster Brandes Ltd. (ID = 489526) Radio

Minuet OB10; Kolster Brandes Ltd. (ID = 562854) Radio

Minuet OB10; Kolster Brandes Ltd. (ID = 562855) Radio
Minuet OB10; Kolster Brandes Ltd. (ID = 495459) Radio Minuet OB10; Kolster Brandes Ltd. (ID = 492172) Radio
Minuet OB10; Kolster Brandes Ltd. (ID = 495460) Radio Minuet OB10; Kolster Brandes Ltd. (ID = 492171) Radio
Minuet OB10; Kolster Brandes Ltd. (ID = 492170) Radio Minuet OB10; Kolster Brandes Ltd. (ID = 492169) Radio
Minuet OB10; Kolster Brandes Ltd. (ID = 723436) Radio Minuet OB10; Kolster Brandes Ltd. (ID = 1206250) Radio
Minuet OB10; Kolster Brandes Ltd. (ID = 1206251) Radio Minuet OB10; Kolster Brandes Ltd. (ID = 1206252) Radio
Use red slider bar for more.
Minuet OB10; Kolster Brandes Ltd. (ID = 495459) Radio
Kolster Brandes Ltd.: Minuet OB10 [Radio] ID = 495459 765x479
Select picture or schematic to display from thumbnails on the right and click for download.
For model Minuet OB10, Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB:
. Gerät nicht mehr in meinem Besitz.

Country:  Great Britain (UK)
Manufacturer / Brand:  Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB
Year: 1957 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 6BE6 6AJ6 6AT6 6AQ5 EZ80
Main principle Superheterodyne (common); ZF/IF 422 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 200-250 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Minuet OB10 - Kolster Brandes Ltd. KB, K.B.,
Material Bakelite or Plastics (type unknown)
Shape Tablemodel without push buttons, Mantel/Midget/Compact up to 14
Dimensions (WHD) 12.5 x 7 x 5 inch / 318 x 178 x 127 mm
Notes Price £8.6s.9d.plus tax. Cream front with black or brown or red case.
Price in first year of sale 9.00 GBP
Mentioned in -- Original-techn. papers. (Vintage Radios. Tony Thompson. ISBN 978 1 86126 949 2)

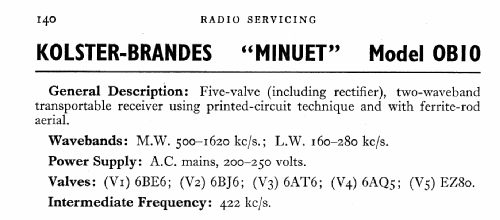

Literature/Schematics (1) Trader sheet 1345. Paul Stennings CD vol 1.

Model page created by Peter Hoddow. See "Data change" for further contributors.
