• Country
• Great Britain (UK)

• Manufacturer / Brand
• Kolster Brandes Ltd. (KB, K.B., ITT); Foots Cray; GB

• Year
• 1963 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 241275

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6L12 6C12 EF89 6LD12 6AT6 6P15 6P15 UU12

• Main principle
• Superheterodyne (common)

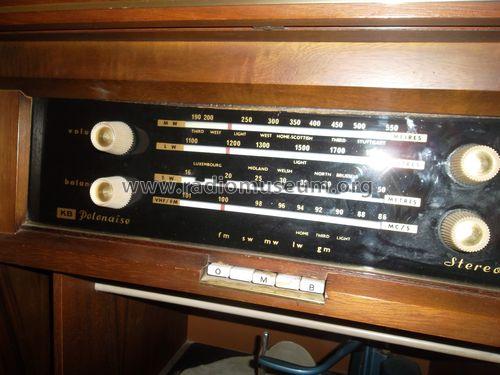

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 6 W (unknown quality)

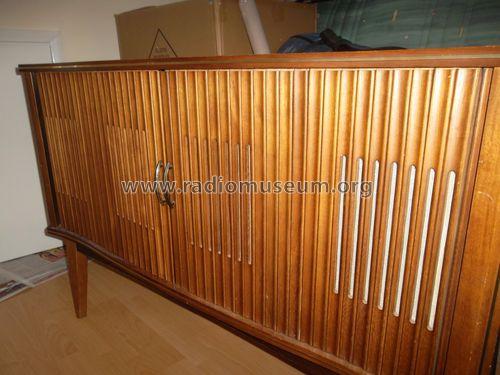

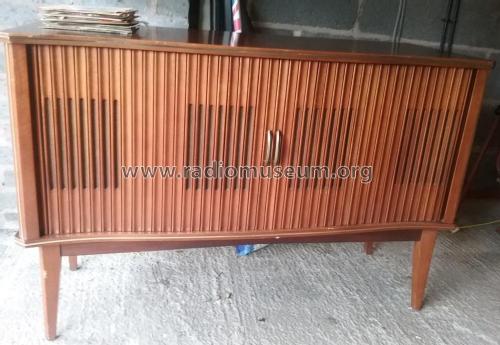

• Material
• Wooden case

• from Radiomuseum.org
• Model: Polonaise WG15 - Kolster Brandes Ltd. KB, K.B.,

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 1040 x 670 x 420 mm / 40.9 x 26.4 x 16.5 inch

• Notes

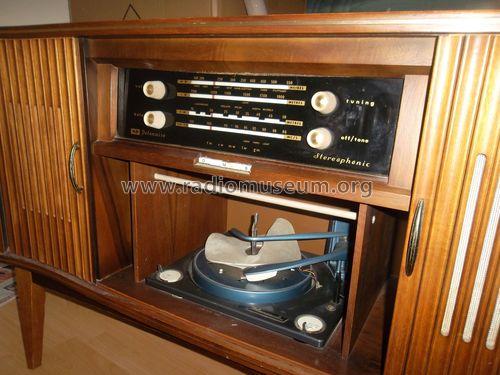

• An 8 valve Radiogram capable of playing records in Stereo and a 4 waveband mono (2 channel) radio. Output power is claimed to be 3 watts per channel

  FM coverage; 87 to 101MHz,
  SW coverage; 6 to 18.75MHz

• Net weight (2.2 lb = 1 kg)
• 37.2 kg / 81 lb 15 oz (81.938 lb)

• Author
• Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
